Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

Name: Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management
Brand: GreeF
Price: 1 USD

Brand Name : GreeF

Model Number : GT-PCTC

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, Western Union, L/C

Delivery Time : 5-20 working days

Packaging Details : Carton or Plywooden Case

Price : Negotiable

Supply Ability : 5

3-phase dump load time-lapse : 12-20 min

Packaging : Carton Or Plywood Case

Product Category : On Grid Controller

Automatic protection function : Over voltage protection, Grid cut off protection, Regulated supply output, Arrester

Display mode : LCD Touch Screen

Communication interface (optional) : RS485/USB/GPRS/WIFI/Ethernet

Type : AC To DC Converter

Output Type : DC

Contact Now

Features:

Product Name: On Grid Controller
Degree of protection: IP20(Indoor) IP65 (Outdoors)
Manual function: Manual brake, Reset, Emergency switch
Display mode: LCD Touch Screen
3-phase dump load time-lapse: 12-20 min
Function: Rectifier, Control, DC Output

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

Product Introduction

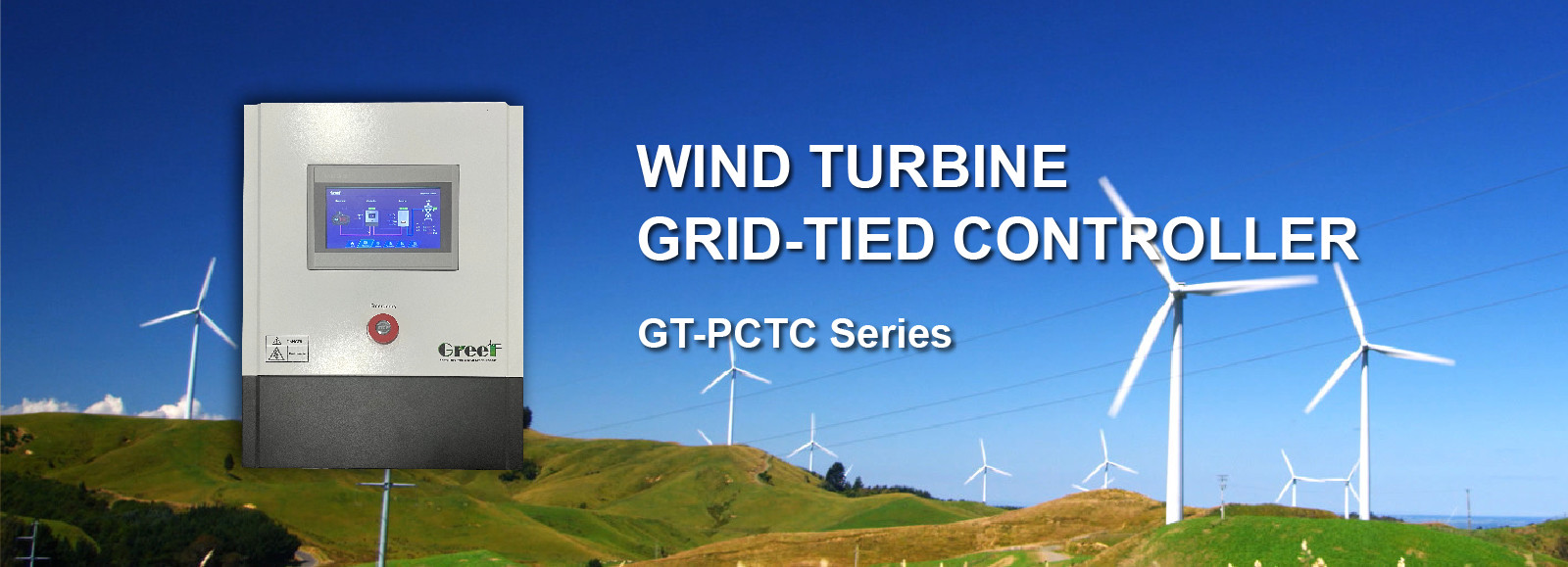

Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor.
GT-PCTC series wind professional grid-tied controller which have Double safety control systems:PWM constant voltage system and three-phase dump load brake system, It can control Solis solar invertor working then let the solar invertor suitable for wind turbine working condition.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
PWM constant voltage	≥400dc			≥700dc
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW
Wind turbine rated power	10KW	20KW	30KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

Product Details

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

System Solution

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
requirements, please contact us!

Product packaging

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management
