3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors

Name: 3kw 800kw Off Grid Invertor Inverter For Single Three Phase Motors
Brand: GreeF
Price: 1 USD

Quality 3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors for sale

Brand Name : GreeF

Model Number : BNXG

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 Sets

Delivery Time : 25-30 Working days

Packaging Details : Foam + Plywooden Case

Type : DC/AC Inverters

Capacity : 3kW-2500kW

Input Voltage : 120V/220V/240V/380V

Output Voltage : 220V/380V/400V

Output Frequency : 50/60Hz

Output waveform : Pure Sine Wave Output

Efficiency : 95%

Certificate : CE

Display : LCD

Warranty : 1 Year

Contact Now

3kw-800kw Off-grid invertor inverter for single /three phase motors

OFF-GRID INVERTER

Product Overview

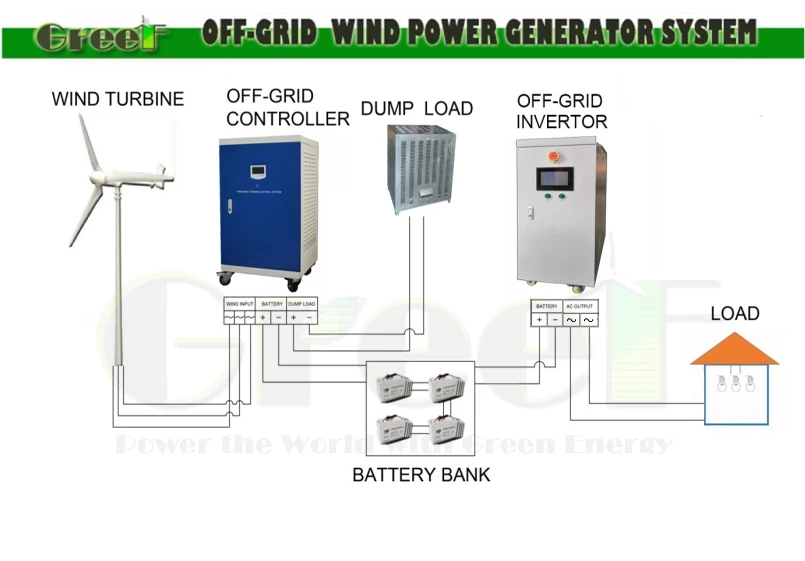

Wind off-grid power system consists of the wind turbine, controller, battery, wind off grid inverter and distribution system. Wind generate AC power through the wind turbine generator driven by the wind, and then converted to be DC power. The wind turbine off grid inverter will inverte the DC power to be the right voltage , frequency and pure sine wave AC power to the local load.When the wind speed is very hight to cause high dc voltage, the controller will start beyond full energy by unloading, removing.

Product Description

Technical Specification
Model	GI-3K	GI-5K	GI-10K	GI-15K	GI-20K	GI-30K	GI-40K	GI-50K	GI-60K
Power	3kW	5kW	10kW	15kW	20kW	30kW	40kW	50kW	60kW
Input Voltage Range	DC 176-380V							DC 304-480V
Input Rated Voltage	DC 220V							DC 380V
Rated Input Current	13A	22A	45A	68A	90A	135A	180A	131A	157A
Operating Phase	Single phase two wire system
Rated Output Voltage	AC 220V
Rated Output Frequency	50Hz
Output Current Rating	13A	22A	45A	68A	90A	135A	180A	225A	270A
Overload Capacity	120% 1min,150% 10s
Output Voltage Stability	≤±1%
Output Frequency Stability	≤0.01%
Output Voltage Distortion	THDu≤2%
Inversion Efficiency	≥90%
Defensive Function	Input undervoltage, overvoltage, overheat protection; Output overload and short circuit protection
Display Function	Main control touch screen: 7 inches, resolution 800*480 (HD)
Communicating Function	RS485(standard)/RS232(optional)/ Ethernet Port (optional)
Work Environment	Ambient temperature -5 ~45, relative humidity 0~95% under the condition of full load 24 hours non-stop work
Level Of Protection	IP21
Type Of Cooling	Fan forced air cooling
Altitude	≤5000m
Compression Strength	AC1500V 1min,leak current<10mA
Insulation Resistance	≥100MΩ
Noise	≤55dB(A)
Size (Width * Depth * Height)	482420223	350560600	400660700		5008301000		52011601250		65014201365
Weight(kg)	30	55	85		170		190

Technical Specification
Model	GIT-10K	GIT-20K	GIT-30K	GIT-40K	GIT-50K	GIT-60K	GIT-90K
Power	10kW	20kW	30kW	40kW	50kW	60kW	90kW
Input VoltageRange	DC 176-380V				DC 304-480V
Input Rated Voltage	DC 220V				DC 380V
Rated Input Current	45A	90A	135A	180A	131A	157A	236A
Operating Phase	Three phase four wire system
Rated Output Voltage	AC 380V
Rated Output Frequency	50Hz
Output Current Rating	15A	30A	45A	60A	75A	90A	135A
Overload Capacity	120% 1min,150% 10s
Output Voltage Stability	≤±1%
Output Frequency Stability	≤0.01%
Output Voltage Distortion	THDu≤2%
Inversion Efficiency	≥90%
Defensive Function	Input undervoltage, overvoltage, overheat protection; Output overload and short circuit protection
Display Function	Main control touch screen: 7 inches, resolution 800*480 (HD)
Communicating Function	RS485(standard)/RS232(optional)/ Ethernet Port (optional)
Work Environment	Ambient temperature -5 ~45, relative humidity 0~95% under the condition of full load 24 hours non-stop work
Level Of Protection	IP21
Type Of Cooling	Fan forced air cooling
Altitude	≤5000m
Compression Strength	AC1500V 1min,leak current<10mA
Insulation Resistance	≥100MΩ
Noise	≤55dB(A)
Equipment (Width * Depth * Height)	5008301000		52011601250			65014201365
Weight(kg)	150	185	340	410	410	510	510

Model	GIT-100K	GIT-120K	GIT-150K	GIT-200K	GIT-300K	GIT-400K	GIT-600K	GIT-800K
Power	100kW	120kW	150kW	200kW	300kW	400kW	600kW	800kW
Input Voltage Range	DC 384-780V
Input Rated Voltage	DC 480V
Rated Input Current	208A	250A	312A	416A	625A	833A	1250A	1666A
Operating Phase	Three phase four wire system
Rated Output Voltage	AC 380V
Rated Output frequency	50Hz
Output Current Rating	150A	180A	225A	300A	450A	600A	900A	1200A
Overload Capacity	120% 1min,150% 10s
Output Voltage Stability	≤±1%
Output Frequency Stability	≤0.01%
Output Voltage Distortion	THDu≤2%
Inversion Efficiency	≥90%
Defensive Function	Input undervoltage, overvoltage, overheat protection; Output overload and short circuit protection
Display Function	Main control touch screen: 7 inches, resolution 800*480 (HD)
Communicating Function	RS485(standard)/RS232(optional)/ Ethernet Port (optional)
Work Environment	Ambient temperature -5 ~45, relative humidity 0~95% under the condition of full load 24 hours non-stop work
Level Of Protection	IP21
Type Of Cooling	Fan forced air cooling
Altitude	≤5000m
Compression Strength	AC1500V 1min,leak current<10mA
Insulation Resistance	≥100MΩ
Noise	≤55dB(A)
Size (Width * Depth * Height)	65014201365			15508501880	191011601940		31009002080
Weight(kg)	700			1080	2250		3600

System Solution

Why Choose Us

Our vertical wind generator and battery are free 3 years warranty, controller and invertor are 1 years warranty.All lifelong technical support and part cost supply.
 (1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
 (2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
 (3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
